Shop Maintenance

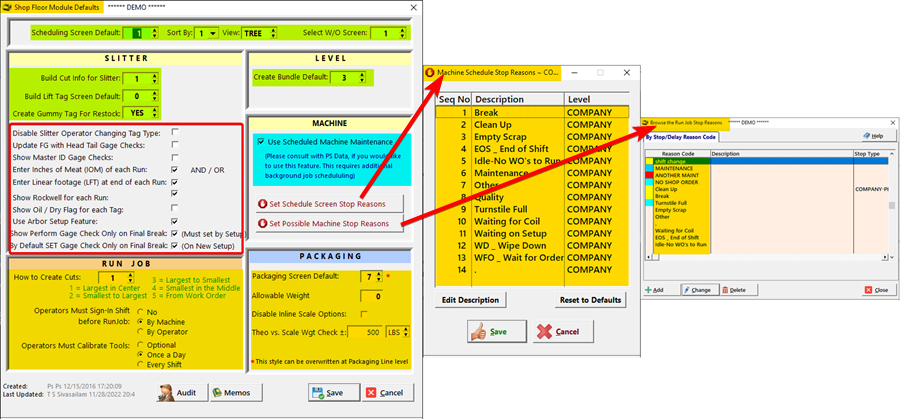

Module Defaults
The window is for configuring the default settings of shop floor module,
the fields available are enabled by choosing option from list of values or by enabling the check box against
the process or functions, based on the configuration the screen display,
report generation and other functionalities are triggered.
Screen Types
These shouldn't be changed without PS Data Assistance
Scheduling Screen Default
Select a Work Order Style
Slitter
Build Cut Info for Slitter
Build Lift Tag Screen Default
Level
Create Bundle Default
Packaging
Packaging Screen Default
Configurable Settings
Slitter
Create Gummy Tag for Restock:
is used when a tag is being restocked/returned from the processing line and is accounted into inventory.
Disable Cut Level Tag Type
checking removes the ability of operator to set the cut as: Drop, Scrap FG's,
Update FG with Head Tail Gage Checks
Replace the gages from master with operator checks.
Show Inches of Meat, Linear footage, Rockwell, Oil/Dry Flag of each Run:
Popup after slitting with info.
Show Oil/Dry Flag for each Tag:
Popup after slitting for each tag.
Show Perform Gage Check on Each Break
This will just give a popup instructing operator to do check.
Perform Gage check on Each break.
Will have operator enter the checks.
How to Create Cuts
will define how the cuts will be run through the machine at the time of processing.
Packaging
Allowable Weight Difference
Allowed difference between Scale and Theo weight of a FG.
Disable inline Scale Options
If you’re not weighing steel as it goes out the door.

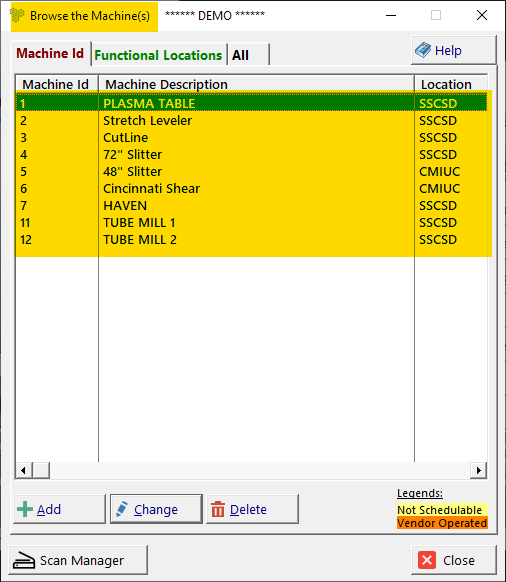

Machine ID

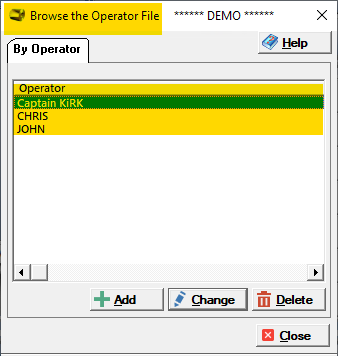

Operators

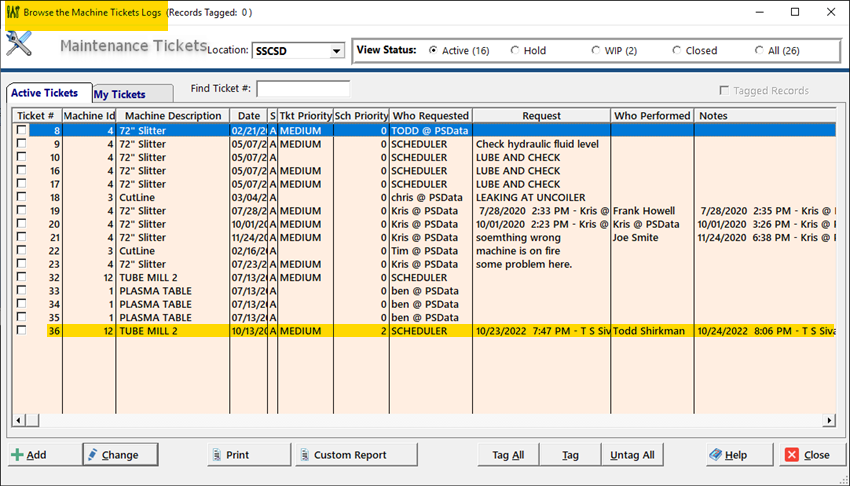

Maintenance Ticket
The browse window lists the tickets of machine id of maintenance generated against each location based on the status of ticket,
with machine id, machine description, date on which the ticket raised, ticket priority, request and status.

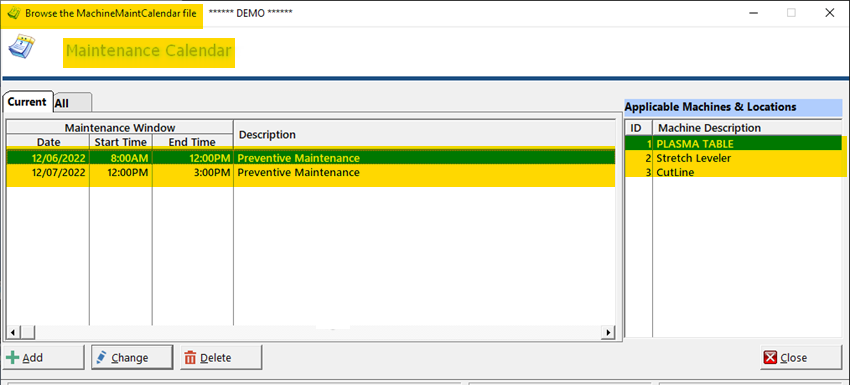

Maintenance Calendar
The browse window lists the planned maintenance calendar schedule with current date, start time and end time.

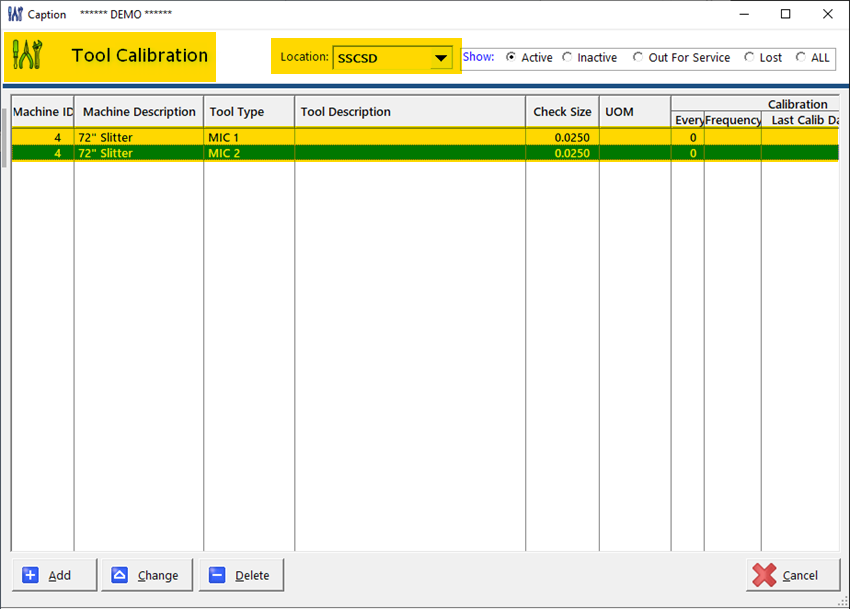

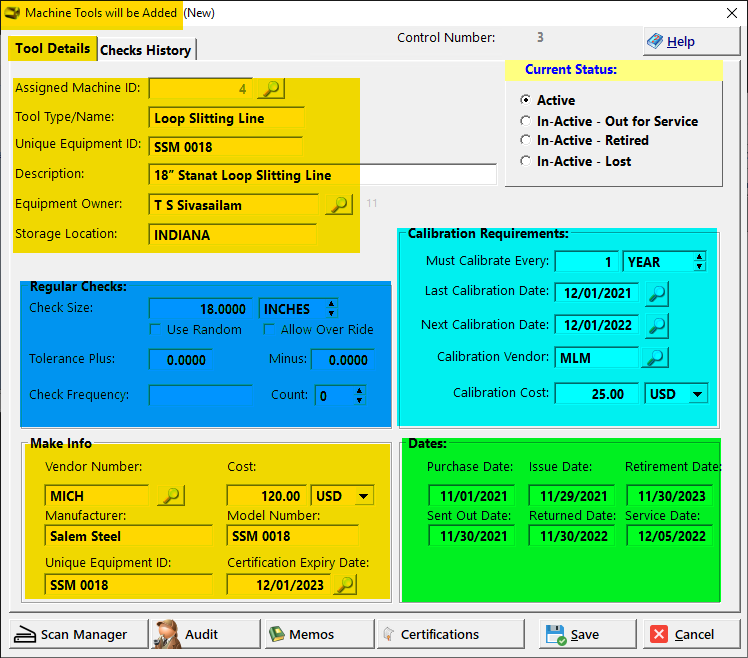

Tool Calibration
The browse window lists the tool calibration for each of the machine’s id, since the tool are subject to wear and tear,
the tools should be maintained periodically to ensure that the processing is not hindered due to breakdown of tools.
The window is for maintaining the schedule of checking the calibration of tools used in each machine id,
the tools can be in anyone of the status (Active, In-Active- Out for service, In-Active -Retired, In-Active-Lost)
with details of calibration history, put in use, certification of the tool etc.,
Projects

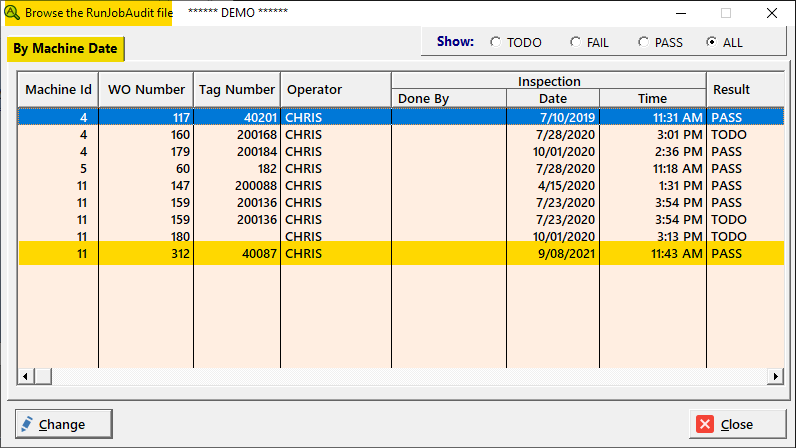

Run Job QC Audits
The browse window lists the Audit schedule based on the following status (TODO, FAIL, PASS AND ALL)
The default status is TODO, since inspection has to be conducted on the Job scheduled, the inspecting officer will check the tag.
and the job, if necessary will take a sample and will either clear the job or fail it, by providing notes and will authenticate with
password for future reference.
Lift Tag Re Cost Numbers

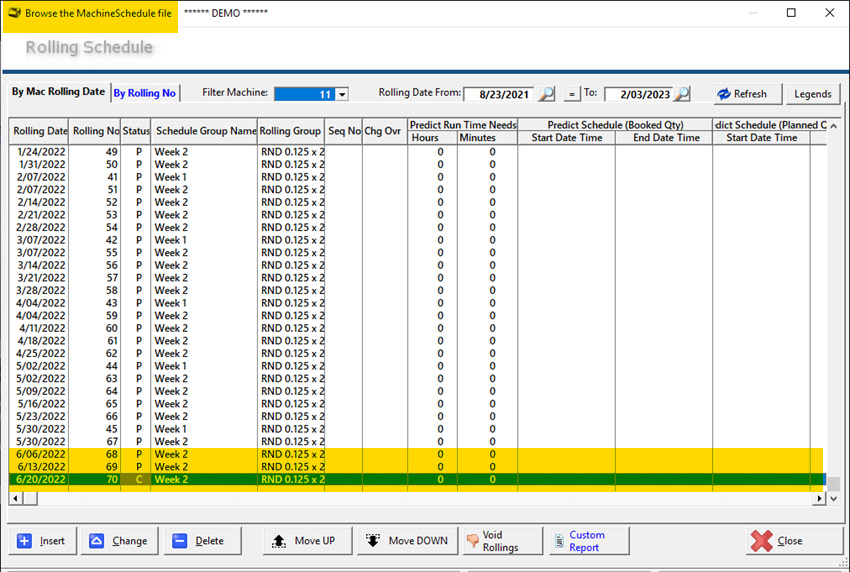

Machine Rolling Schedule
